AIR SHOWER

Air Shower

Air Shower

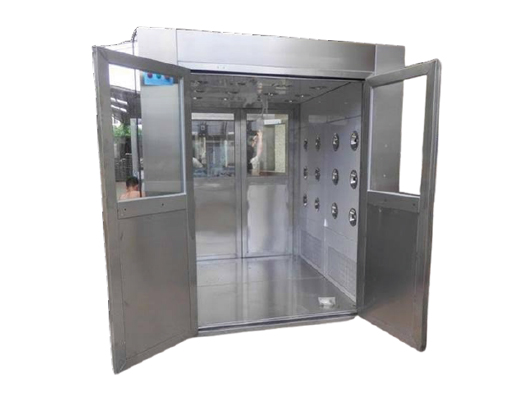

The AIR SHOWER is fully self-contained units, designed to provide complete decontamination solutions for various clean room applications. Air Shower has designed to supplying Classes 100 HEPA filter air at high velocity it helps to remove particle matters from the personal entering into the cleanroom. Nexgen pharmatech manufacturer, supplier and exporter of air shower handling unit in Mumbai, India to entire world with long lasting products and reasonable price. This unit helps to remove dust effectively and maintains the normal working status.

MODEL NO. WORK AREA DIMENSION
(L X W X H) MM
AS-700 700 X 850 X 2000 MM
AS-700 700 X 1200 X 2000 MM

Specifications

MOC SS 304 SHEET 1 MM THICK SHEET MATT FINISHED
AIR CLEANLINESS ISO CLASS 5
AIR VELOCITY 25-30 MPS
MAGNEHELIC GAUGE 0-50 MMWC
POWER SUPPLY 230 V AC 1 PHASE 50 HZ /415 VAC 3 PHASE 50 HZ
EMERGENCY OPERATION EMERGENCY STOP WILL BE PROVIDED
TIME SETTING FOR AIR SHOWER TIME SETTING FOR AIR SHOWER OPERATION (SET TABLE FOR 30 SECONDS TO 5 MINUTES)
DOOR SS 304 DOORS PUFFING WITH DOUBLE WALLED FLUSH TOUGHENED GLASS VIEW PANELS AND DOOR CLOSER, SS 304 HINGES FOR DOOR
NOISE LEVEL LESS THAN 67 DB
VIBRATION LEVEL MINIMUM
SWITCHES 6/15 AMP SINGLE PHASE SOCKET USE FOR EXTERNAL EQUIPMENT
UV LIGHT 5-18 WATT HOUR METRE
FLOURESCENT LIGHT 250 LUX AT WORK PLACE
