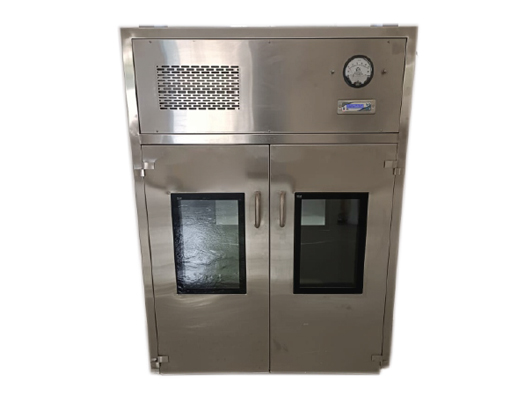

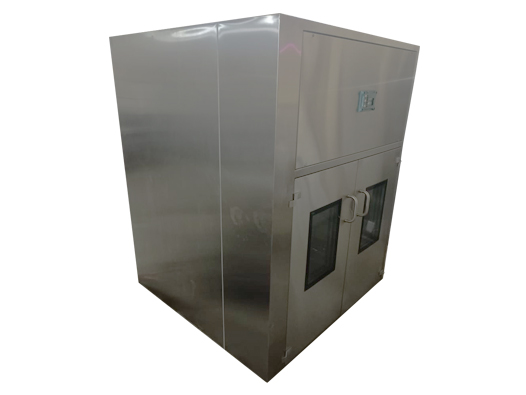

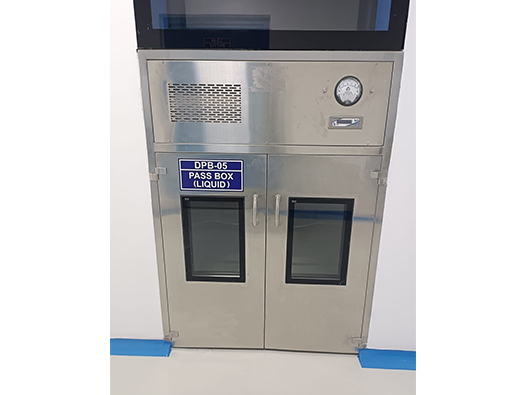

Dynamic Pass Box

Dynamic Pass Box

Nexgen Pharmatech manufacturer and supplier of dynamic pass box used to transfer materials controlled environments between different levels. We are manufacturers, suppliers and exporters of Dynamic Pass Box in Mumbai, India to worldwide with ISO standards. We have wide range of pass box as per your requirement and suggestion.

MODEL WORK AREA DIMENSION
(L X W X H)
DPB –610 610 X 610 X 610 MM
DPB – 900 900 x 900 x 900 MM
DPB – 1000 1000 X 1000 X 1000 MM
DPB – 1200 1200 X 1200 X 1200 MM

Specifications

AIR FLOW VERTICAL-RECIRCULATORY
AIR CLEANLINESS ISO CLASS 5
AIR VELOCITY 0.45 ± 0.05 MPS
HEPA FILTER O.3 MICRON BOX TYPE, MOC-ALUMINIUM, MEDIA MICRO, FIBRE GLASS, EFFICIENNCY-99.999% DOWN TO 0.3 MICRON, GRADE H14
FINE FILTER 5 MICRON FLANGE TYPE, MOC-ALUMINIUM, MEDIA NON WOVEN SYNTHETIC POLYESTER, EFFICIENCY : 95% DOWN TO 5 MICRON.
MAGNEHELIC GAUGE 0-25 MMWC
MOTOR AND BLOWER STAICALLY AND DYNAMICALLY BALANCED MOTOR BLOWER
POWER SUPPLY 230/415 V AC 1/3 PHASE 50 HZ
TYPE FLP / NON FLP
NOISE LEVEL LESS THAN 67 DB
VIBRATION LEVEL MINIMUM
SWITCHES ON/OFF SWITCHES FOR BLOWER & LIGHT
DOP PORT DOP TEST PORT AT UPSTREAM OF HEPA FILTER INTEGRITY TEST
